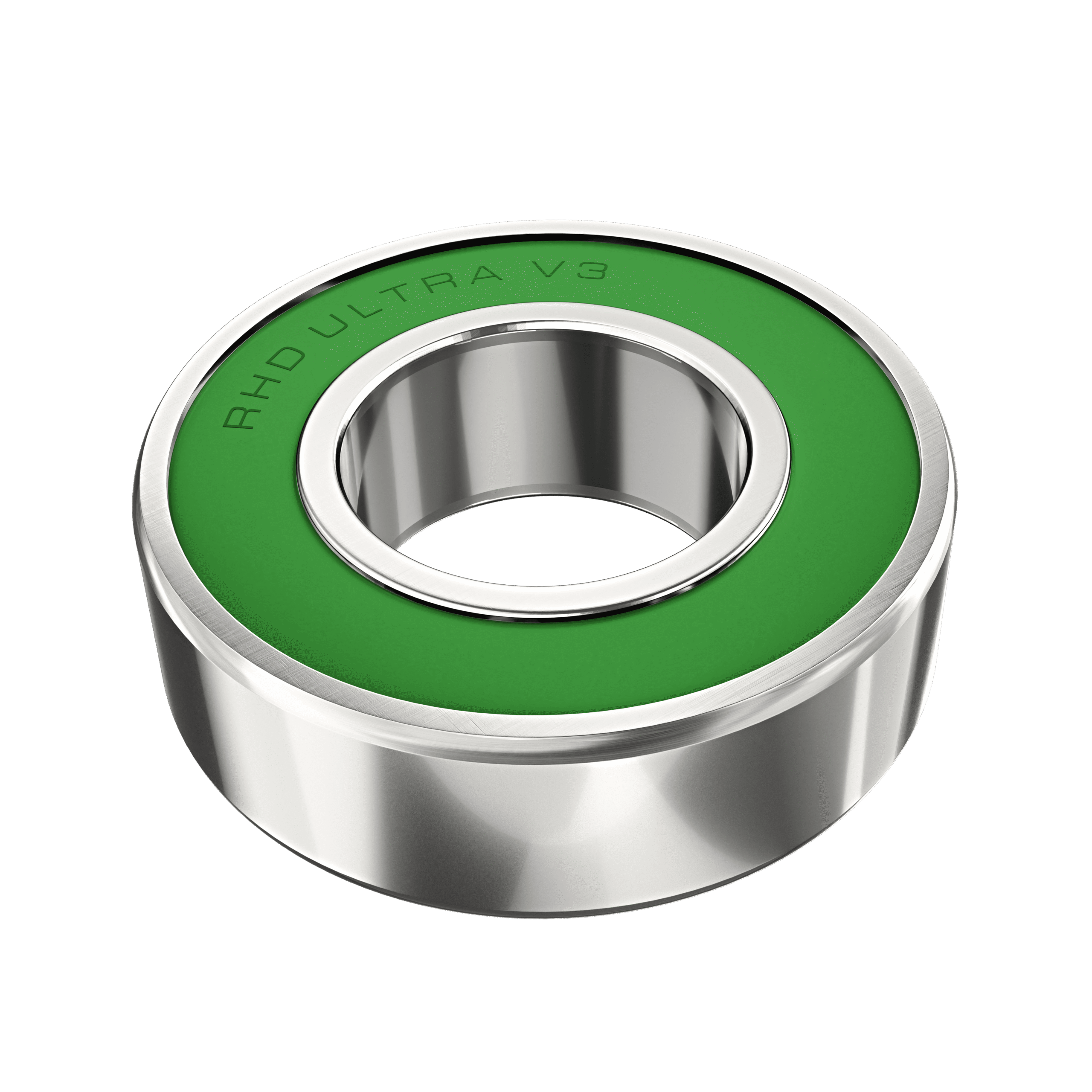

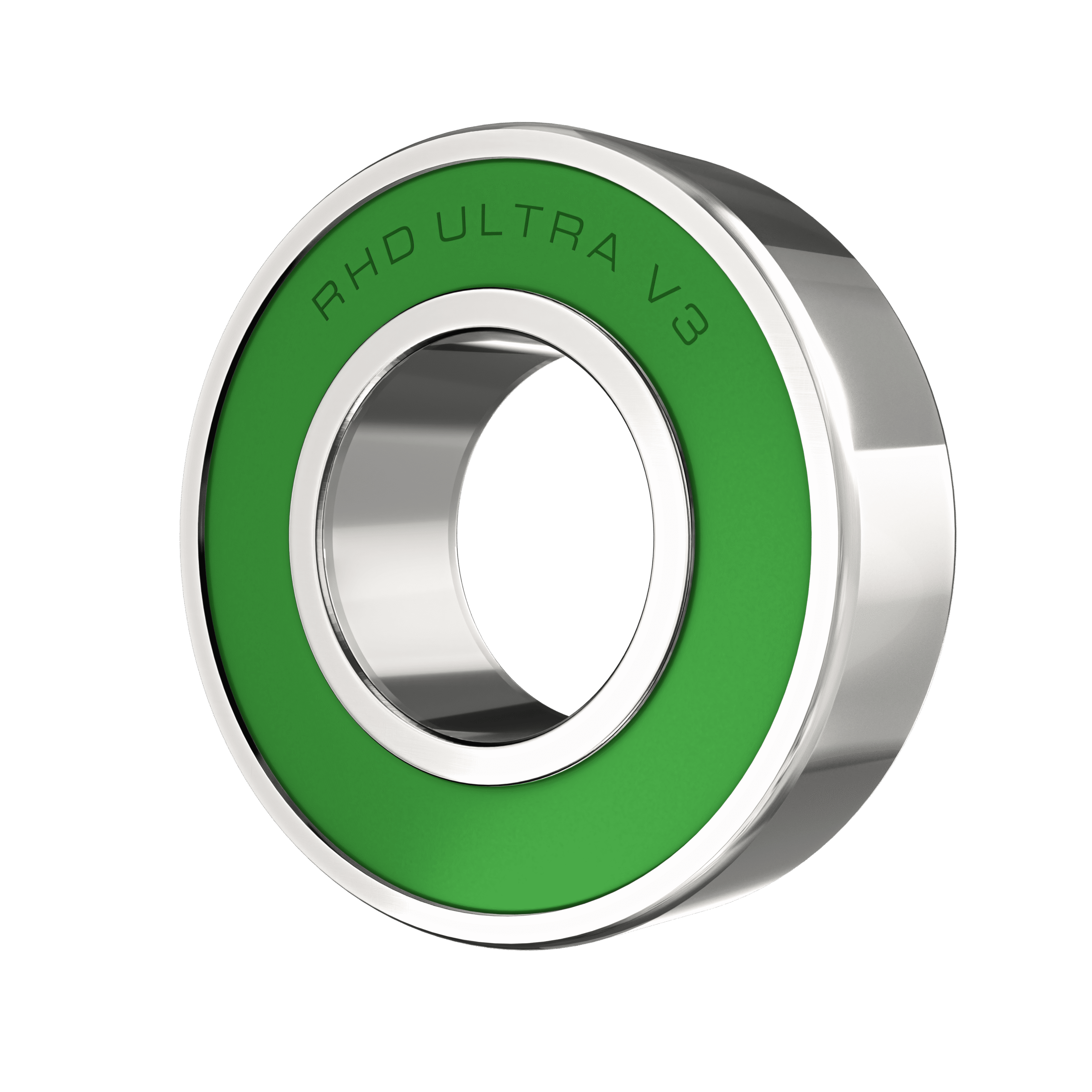

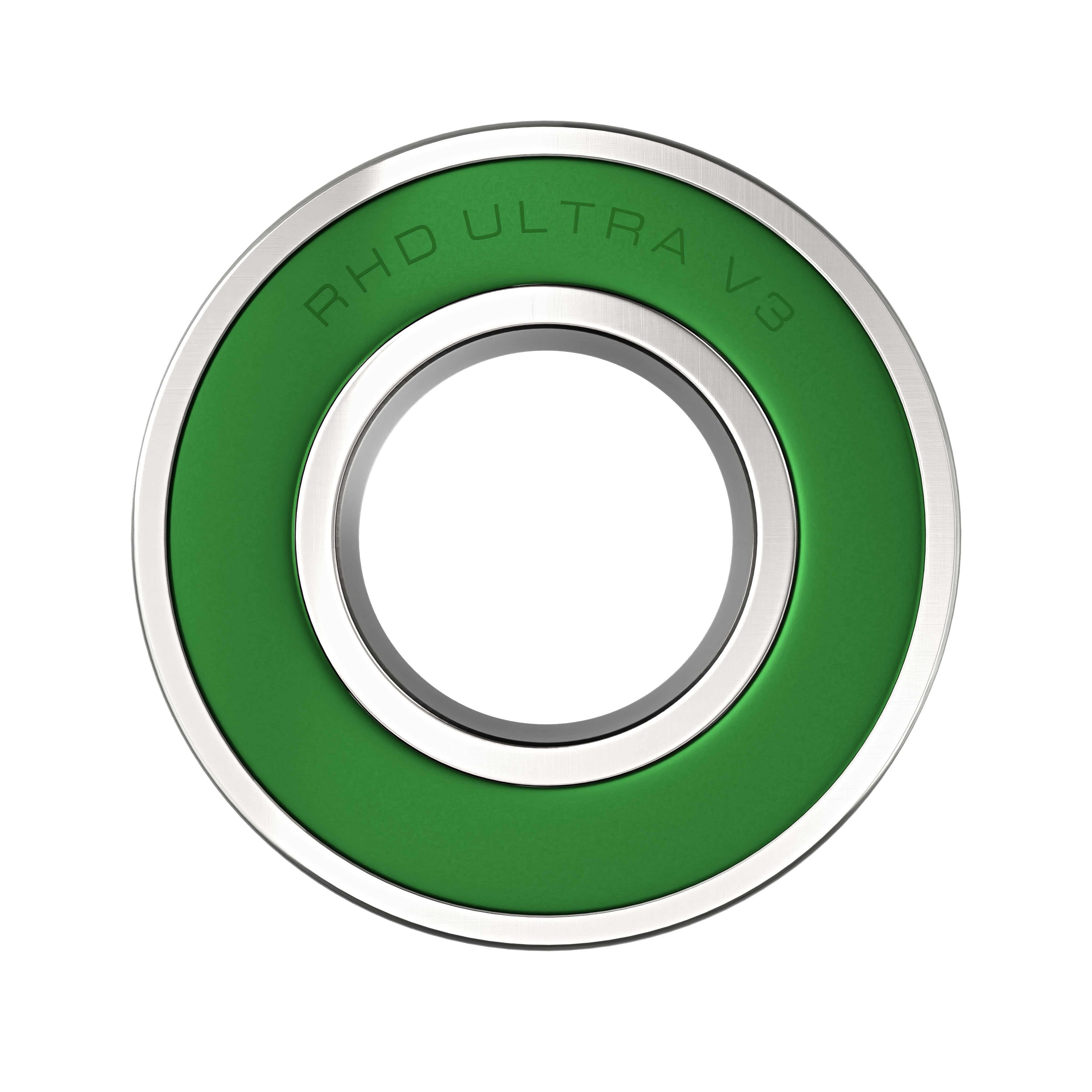

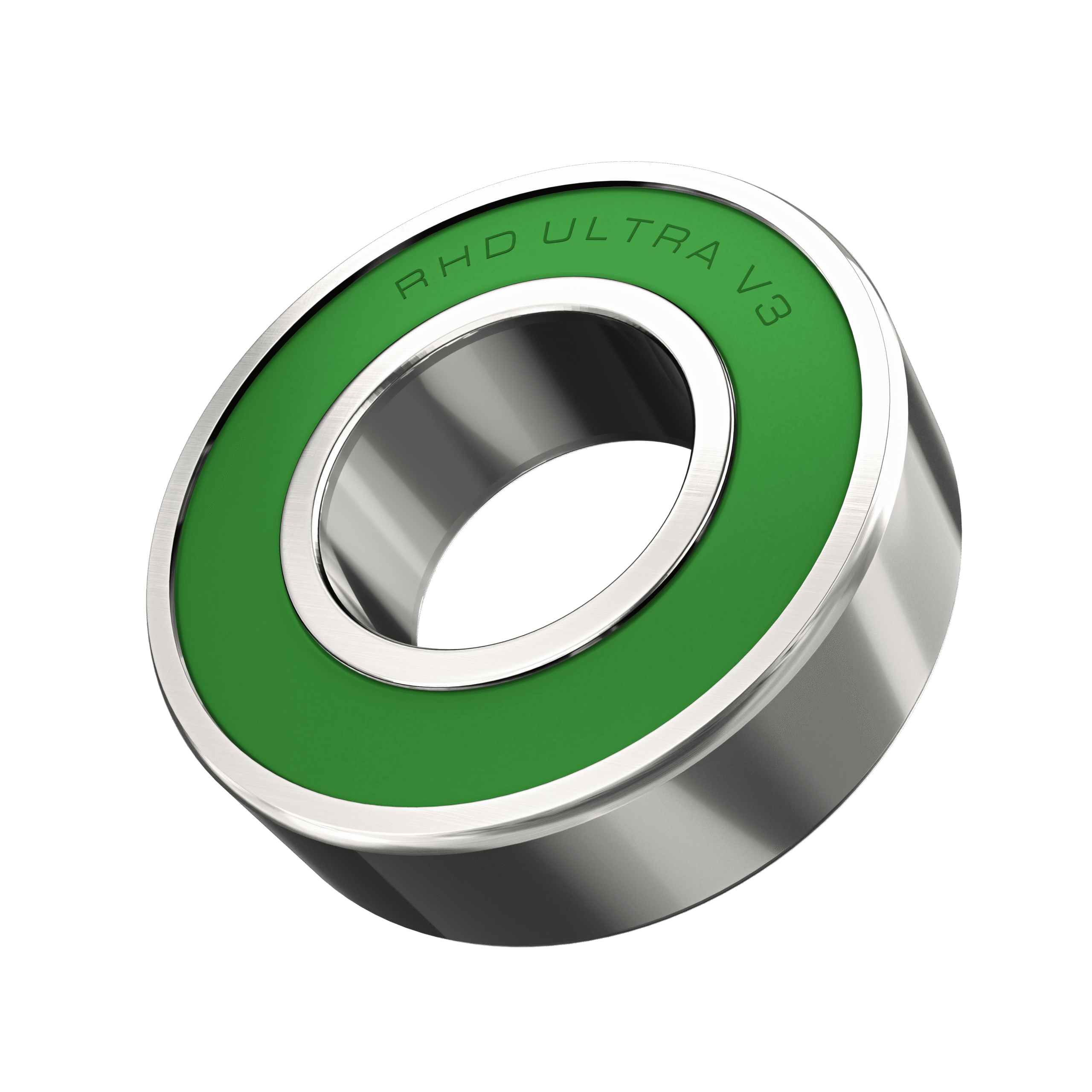

RHD V3 BEARINGS

Discover the exceptional performance of RHD’s V3 Ball Bearings. Designed for high precision and durability, these bearings support impressive RPM ranges, ensuring optimal performance even under demanding conditions. Perfect for advanced industrial applications, RHD V3 Ball Bearings deliver unparalleled reliability and efficiency, making them the ideal choice for high-performance machinery. Experience the superior quality and longevity that RHD Bearings are renowned for.

Features

HIGH-PRECISION TOLERANCES

Our V3 Ball Bearings are manufactured with ultra-precise tolerances, ensuring minimal play and maximum accuracy in high-performance applications.

EXTENDED SPEED CAPABILITIES

Engineered to support higher RPM ranges, V3 Ball Bearings are ideal for applications requiring rapid, smooth motion, ensuring efficient and reliable operation.

ENHANCED NOISE REDUCTION

Meeting stringent Z3 noise level standards, these bearings operate quietly, making them suitable for noise-sensitive environments and high-speed machinery.

ROBUST AND VERSATILE

With a wide range of sizes available, V3 Ball Bearings are versatile and robust, making them suitable for diverse industrial, automotive, power tools and mechanical applications.

EXCELLENT VIBRATION CONTROL

Adhering to V3 vibration levels, our bearings provide exceptional stability, reducing operational vibrations and enhancing machinery performance.

ADVANCED MATERIALS

Constructed from high-grade 52100 chrome steel, these bearings deliver superior durability, corrosion resistance, and long-lasting performance.

Z3V3 EMQ GRADE BEARINGS FOR 2880 RPM to 15000 RPM APPLICATIONS

Available Series

6000 SERIES

Our inventory includes bearings ranging from the 6000 to 6030 series, offering Metal Shields (Z, 2Z), Rubber Seals (RS, 2RS), and Open Type options. We also provide K type and N type variants, along with CN, C2, C3, and C4 clearances for tailored performance.

6200 SERIES

Our inventory includes bearings ranging from the 6200 to 6230 series, offering Metal Shields (Z, 2Z), Rubber Seals (RS, 2RS), and Open Type options. We also provide K type and N type variants, along with CN, C2, C3, and C4 clearances for tailored performance.

6300 SERIES

Our inventory includes bearings ranging from the 6300 to 6330 series, offering Metal Shields (Z, 2Z), Rubber Seals (RS, 2RS), and Open Type options. We also provide K type and N type variants, along with CN, C2, C3, and C4 clearances for tailored performance.

6900 SERIES

Our inventory includes bearings ranging from the 6900 to 6920 series, offering Metal Shields (Z, 2Z), Rubber Seals (RS, 2RS), and Open Type options. We also provide K type and N type variants, along with CN, C2, C3, and C4 clearances for tailored performance.

MINIATURE SERIES

Our Miniature Bearings inventory includes bearings ranging from the 1mm Inner Diameter to 9mm Inner Diameter, offering Metal Shields (Z, 2Z), Rubber Seals (RS, 2RS), and Open Type options. We also provide with CN, C2, C3, and C4 clearances for tailored performance.

Switch to RHD, Because everybody else is!

Bearings Sold

150

OEMS

400

Channel Partners

APPLICATIONS

POWER TOOLS

ELECTRIC MOTOR

HOME APPLIANCES

GEARBOX & REDUCERS

COMPRESSORS

Enhance your experience

Bearing Size Chart

Quality Control

Test Certificates

SIZE	INNER DIAMETER (ID)	OUTER DIAMETER (OD)	WIDTH
6000	10	26	8
6001	12	28	8
6002	15	32	9
6003	17	35	10
6004	20	42	12
6005	25	47	12
6006	30	55	13
6007	35	62	14
6008	40	68	15
6009	45	75	16
6010	50	80	16
6011	55	90	18
6012	60	95	18
6013	65	100	18
6014	70	110	20
6015	75	115	20
6016	80	125	22
6017	85	130	22
6018	90	140	24
6019	95	145	24
6020	100	150	24
6021	105	160	26
6022	110	170	28
6024	120	180	28
6026	130	200	33
6028	140	210	33
6030	150	225	35

VISUAL INSPECTION

The visual inspection is the start of our quality control checks. A trained eye can quickly determine any discrepancies or visual faults to the material or assembly.

RADIAL CLEARANCE TOLERANCE TESTING

The radial clearance is very important to the operation of the bearing. Our machines are calibrated regularly to ensure the tolerances adhere to DIN standards certificated by the German TUV.

VIBRATION TESTING

Using high, medium and low range frequencies, the vibration test can identify a range of bearing defects, such as imbalance, play and misalignment.

INNER & OUTER TOLERANCE TESTING

The inner and outer tolerance test measures the precise dimensions of the bearing. Our strict tolerances are again set according to the DIN standards.

NOISE TESTING

Highly sensitive microphones measure and identify audible peaks of a rotating bearing. These peaks can indicate faults to the raceways or possible grease pollution.

ROCKWELL TESTING

The Rockwell test determines the hardness of the material by measuring the depth of penetration of an indenter under load.

GALLERY

Frequently Asked Questions

Can’t find what you’re looking for? don’t hesitate to reach out!

What RPM ranges can RHD V3 Ball Bearings support?

RHD V3 Ball Bearings are engineered to handle a wide range of RPMs. Specifically, our miniature V3 bearings can support up to 15,000 RPM, while the standard 6000, 6200, 6300, 6400, 6800, and 6900 series are capable of operating at up to 2880 RPM. This versatility makes them ideal for applications requiring high-speed performance and precision, ensuring smooth and reliable operation even in demanding environments.

How do RHD V3 Ball Bearings ensure durability in high-load applications?

RHD V3 Ball Bearings are constructed using premium-grade 52100 chrome steel, known for its high hardness and wear resistance. The bearings are subjected to rigorous heat treatment processes to enhance their structural integrity and durability. Additionally, the optimized internal geometry and precise manufacturing tolerances contribute to their ability to withstand heavy loads and high-impact conditions, ensuring long service life and reduced maintenance needs.

What noise and vibration levels do RHD V3 Ball Bearings adhere to?

RHD V3 Ball Bearings are designed to meet stringent noise and vibration standards. They conform to Z3 noise levels and V3 vibration levels, ensuring minimal operational noise and stable performance. The precise engineering and superior material quality help in reducing friction and vibrations, which are critical for applications where quiet and smooth operation is paramount, such as in medical equipment, robotics, and high-precision machinery.

Are RHD V3 Ball Bearings suitable for high-temperature applications?

Yes, RHD V3 Ball Bearings are suitable for high-temperature applications. They are manufactured with high-quality lubricants that can withstand elevated temperatures, ensuring consistent performance. The bearings are also designed with advanced heat treatment processes that enhance their thermal stability. This makes them ideal for use in environments where temperature fluctuations are common, such as in automotive engines, industrial machinery, and aerospace applications.

What sizes and configurations are available for RHD V3 Ball Bearings?

RHD offers a comprehensive range of V3 Ball Bearings in various sizes and configurations to cater to diverse application requirements. The available series include 6000, 6200, 6300, 6400, 6800, and 6900, each with multiple bore diameters, outer diameters, and widths. Additionally, these bearings can be customized with different sealing options, such as metal shields (Z, 2Z) and rubber seals (RS, 2RS), and can be ordered in various clearance levels (C2, CN, C3, C4). This extensive variety ensures that customers can find the perfect bearing to meet their specific needs.
