RHD LINEAR BLOCKS & RAILS

Unlock unparalleled precision and durability with RHD Linear Blocks & Rails. Engineered to provide smooth and reliable linear motion, our blocks and rails are perfect for high-precision applications in industries like CNC machining, robotics, and industrial automation. Crafted from top-quality materials and designed for easy installation, RHD Linear Blocks & Rails ensure consistent performance and long-lasting durability in even the most demanding environments. Trust RHD to keep your machinery running smoothly and efficiently.

Features

SMOOTH AND QUIET OPERATION

Engineered for low friction and minimal noise, RHD Linear Blocks & Rails deliver smooth and silent motion, perfect for noise-sensitive environments.

P CLASS BLOCKS & RAILS

Our linear blocks and rails meet the stringent P class precision standards, ensuring exceptional accuracy and stability for high-precision applications.

BLOCKS WITH METAL BODY

Unlike plastic-bodied alternatives, our blocks feature a durable metal body, enhancing their heavy-duty performance and longevity.

EASY INSTALLATION

Our linear blocks and rails are designed for straightforward installation, reducing downtime and boosting productivity in your operations.

HIGH LOAD CAPACITY

Designed to support substantial loads, our blocks and rails provide robust support and reliable performance, even in the most demanding industrial settings.

VERSATILE APPLICATIONS

Suitable for CNC machines, robotics, industrial automation, and more, RHD Linear Blocks & Rails provide versatile solutions for a variety of industries.

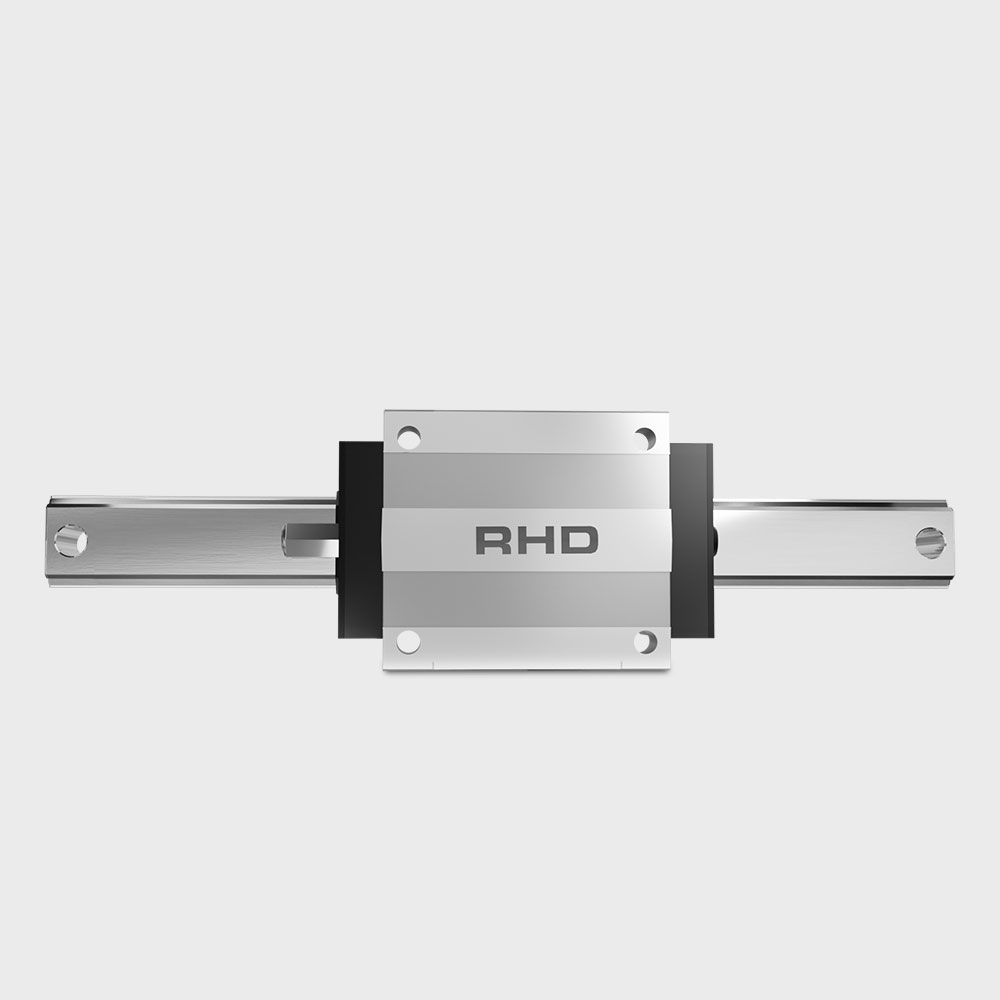

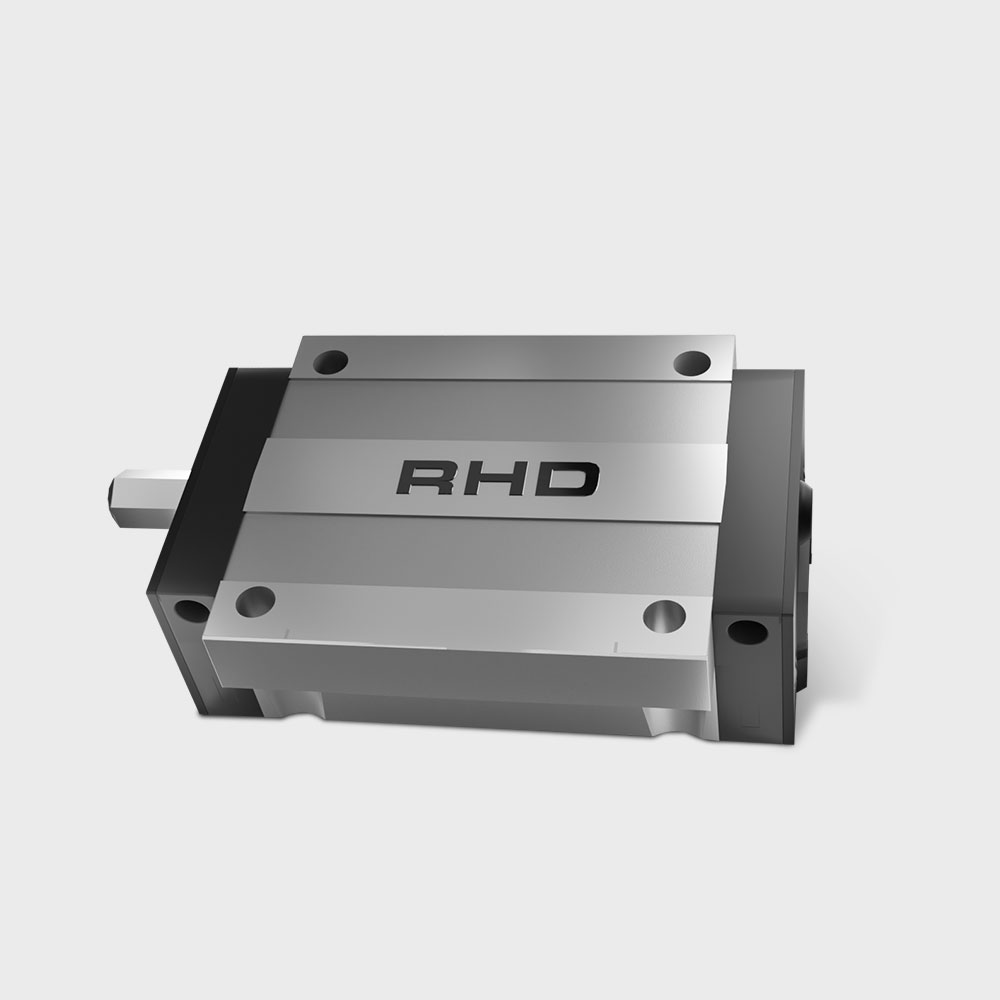

RHD Linear Blocks with Metal Body: P Class

RHD Linear Blocks are engineered for precision and durability, featuring a robust metal body for enhanced performance. Designed to support high loads with minimal friction, they ensure smooth and accurate linear motion. Ideal for CNC machines, robotics, and industrial automation, our linear blocks meet stringent P class standards, guaranteeing exceptional stability and reliability in demanding applications.






RHD Linear Rails: P Class

Crafted with meticulous attention to detail, these bearings excel in applications where accuracy is paramount. Ideal for industries where the margin for error is minimal, the V2 series ensures that every rotation counts.

Available Series

HGH CA
HGH HA
HGW CC
HGW HC
HGL CA
HGL HA
EGH SA
EGH CA
EGW SA
EGW CA
MGN C
MGN H
MGW C
MGW H
VISUAL INSPECTION

VISUAL INSPECTION

The visual inspection is the start of our quality control checks. A trained eye can quickly determine any discrepancies or visual faults to the material or assembly.

RADIAL CLEARANCE TOLERANCE TESTING

RADIAL CLEARANCE TOLERANCE TESTING

The radial clearance is very important to the operation of the bearing. Our machines are calibrated regularly to ensure the tolerances adhere to DIN standards certificated by the German TUV.

VIBRATION TESTING

VIBRATION TESTING

Using high, medium and low range frequencies, the vibration test can identify a range of bearing defects, such as imbalance, play and misalignment.

INNER & OUTER TOLERANCE TESTING

INNER & OUTER TOLERANCE TESTING

The inner and outer tolerance test measures the precise dimensions of the bearing. Our strict tolerances are again set according to the DIN standards.

NOISE TESTING

NOISE TESTING

Highly sensitive microphones measure and identify audible peaks of a rotating bearing. These peaks can indicate faults to the raceways or possible grease pollution.

ROCKWELL TESTING

ROCKWELL TESTING

The Rockwell test determines the hardness of the material by measuring the depth of penetration of an indenter under load.

GALLERY

Frequently Asked Questions

Can’t find what you’re looking for? don’t hesitate to reach out!

What materials are used in RHD Linear Blocks and Rails?

RHD Linear Blocks and Rails are constructed from high-quality alloy steel, which undergoes precision machining and heat treatment processes. The blocks feature a robust metal body, providing superior durability compared to plastic alternatives. This high-grade construction ensures enhanced load-bearing capacity and longevity, making them suitable for demanding industrial applications.

How do RHD Linear Blocks and Rails ensure precise motion control?

Our linear blocks and rails are engineered to meet stringent P class precision standards. This means they are manufactured with tight tolerances, ensuring minimal play and maximum accuracy in linear motion. Advanced ball recirculation technology within the blocks reduces friction and enables smooth, consistent movement, which is critical for applications requiring exact positioning, such as CNC machining and robotics.

Can RHD Linear Blocks and Rails handle high loads?

Yes, RHD Linear Blocks and Rails are designed to support substantial loads. The combination of a metal body and high-quality materials ensures that the blocks can withstand heavy-duty applications without deforming or losing performance. This makes them ideal for use in industrial automation, heavy machinery, and other environments where high load capacity is essential.

What are the benefits of using metal-bodied blocks over plastic-bodied ones?

Metal-bodied blocks, like those used in RHD Linear Blocks, offer significantly greater durability and load-bearing capacity compared to plastic-bodied alternatives. The metal construction provides better resistance to wear, deformation, and environmental factors such as heat and chemicals. This results in longer service life and more reliable performance, especially in demanding industrial applications.

How do I maintain RHD Linear Blocks and Rails to ensure long-term performance?

Proper maintenance is crucial for maximizing the lifespan and performance of RHD Linear Blocks and Rails. This includes regular lubrication to minimize friction and wear, periodic inspections to check for signs of damage or misalignment, and ensuring that the rails are kept clean and free from debris. Additionally, following manufacturer guidelines for installation and usage will help maintain optimal performance and reliability.
